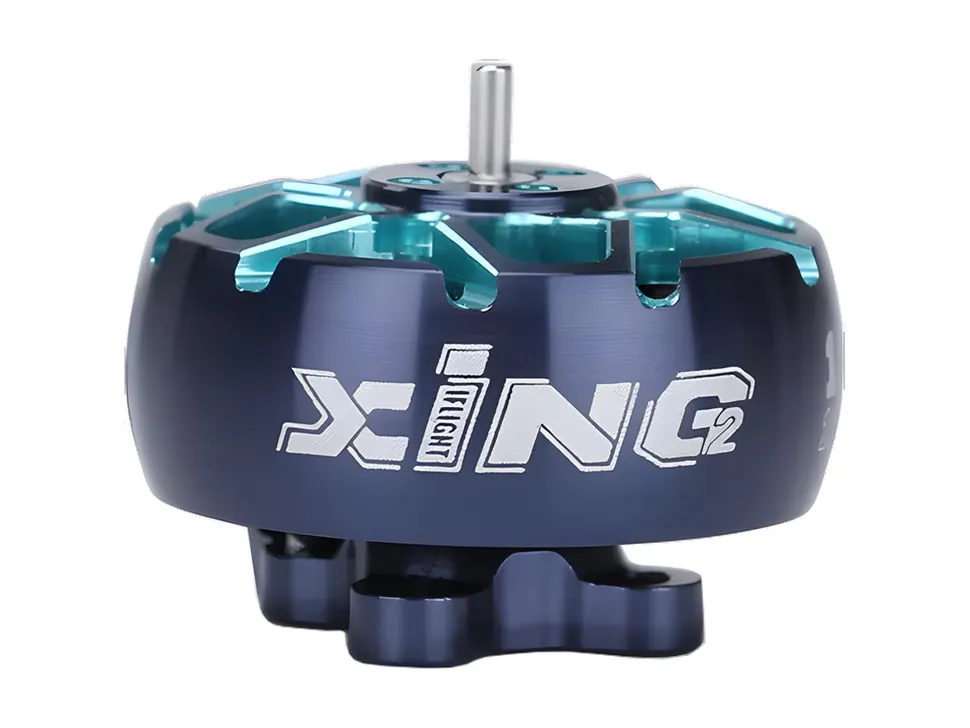

iFlight XING2 1806 Unibell Brushless Motor – Overview

The iFlight XING2 1806 Unibell Brushless Motor is a high-performance and lightweight motor designed for FPV racing and freestyle drones. It delivers fast response, high efficiency, and strong durability. Therefore, it is a great choice for pilots who need precise control and reliable performance.

In addition, the XING2 series improves on earlier designs with advanced engineering and premium materials. As a result, it offers better power output, smoother operation, and longer lifespan.

Key Features

• N52H curved arc magnets for faster response and higher efficiency
• Titanium alloy shaft for strength and reduced weight
• Japanese NSK bearings for smooth and reliable operation
• Unibell design for improved durability and reduced vibration
• Reduced magnet air gap for better power output
• Single-strand copper winding for efficient energy use
• Lightweight design for high-performance builds

Performance Overview

The XING2 1806 motor provides quick acceleration and responsive braking. Therefore, it gives pilots better control during freestyle and racing flights. In addition, the improved stator design increases efficiency and reduces power loss.

Moreover, the compact and lightweight structure helps improve agility and flight time. As a result, it is ideal for smaller drone builds.

KV Options

This motor is available in two KV variants. Therefore, you can choose based on your flying style:

• 1600KV:
  • Suitable for efficient flying and longer flight time
  • Peak Current: 13.99A
  • Max Power: 336W
• 2500KV:
  • Suitable for aggressive freestyle and racing
  • Peak Current: 25.06A
  • Max Power: 601W

Technical Specifications

• Model: XING2 1806
• Configuration: 12N14P
• Input Voltage: 24V
• Dimensions: 25.2 × 16.3 mm
• Mounting Pattern: 12 × 12 mm (φ2 mm)
• Shaft Diameter: 1.5 mm
• Shaft Length (Protruding): 4 mm
• Bearing Type: NSK
• Magnet Type: N52H curved magnets
• Winding: Single-strand copper
• Lead Length: 160 mm (22AWG)
• Weight: 20.2 g (with wires)

Package Includes

• 1 × XING2 1806 Unibell Motor
• 6 × M2 × 8 mm screws
