MOLICEL INR-18650-P30B Battery – Technical Specifications

Model No: INR-18650-P30B
HSN Code: 85076000

• Click here to download – Datasheet

Cell Characteristics

Capacity

• Typical: 3000 mAh (10.8 Wh)
• Minimum: 2900 mAh (10.4 Wh)

Voltage

• Nominal: 3.6 V
• Charge Voltage: 4.2 V
• Discharge Voltage: 2.5 V

Charge Specifications

• Standard Charge Current: 3 A
• Maximum Charge Current: 9 A (60°C cut-off)
• Charging Time: Approximately 1.5 hours

Discharge Specifications

• Continuous Discharge Current: 36 A (80°C cut-off)

Temperature Range

• Charging: 0°C to 60°C
• Discharging: -40°C to 60°C

Energy Density

• Volumetric: 631 Wh/L
• Gravimetric: 234 Wh/kg

Internal Resistance

• AC (30% SOC): 8 mΩ
• DC (50% SOC): 17 mΩ

Product Overview

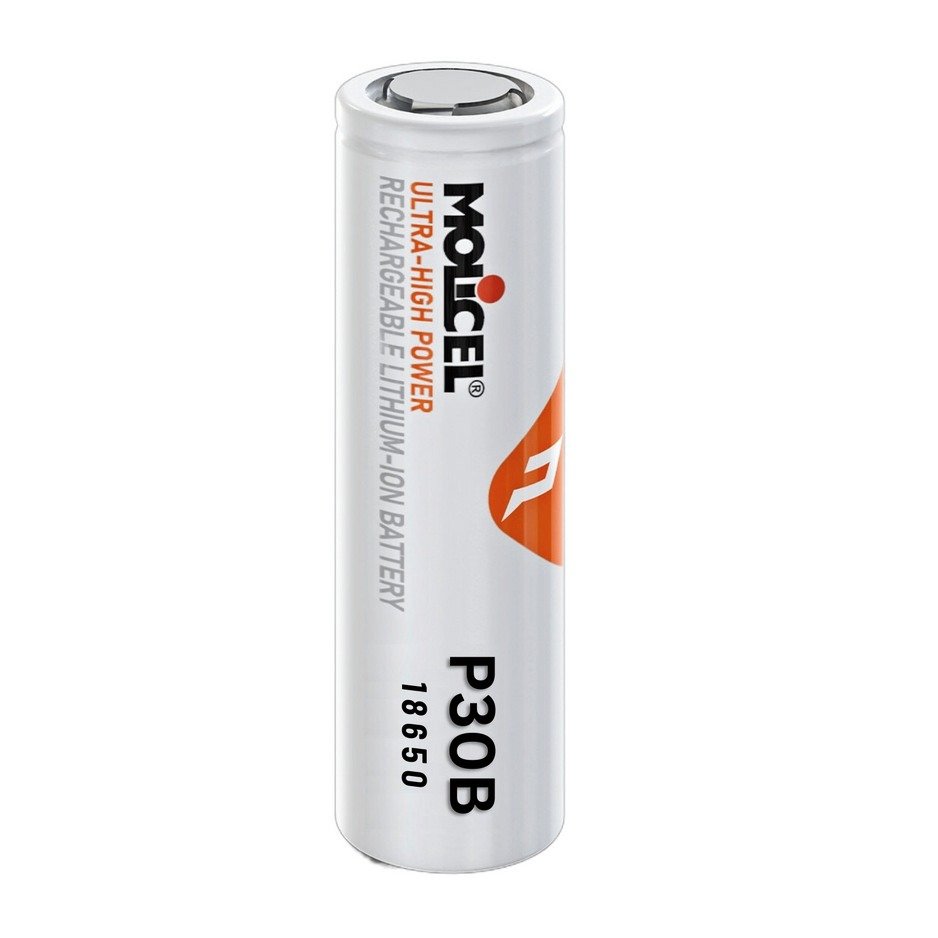

The MOLICEL INR-18650-P30B is a high-performance lithium-ion battery featuring a nominal voltage of 3.6V and a capacity of 3000 mAh. Its fast-charging capability, allowing a full charge in approximately 1.5 hours, makes it well-suited for high-drain applications.

With a continuous discharge current of 36A, this battery is a reliable choice for power tools, electric vehicle (EV) projects, and high-performance electronics. Additionally, its wide operating temperature range of -40°C to 60°C ensures stable and dependable performance even in harsh environments.

Key Highlights

• Fast charging (approximately 1.5 hours)
• High discharge current (36A)
• Wide temperature support
• High energy density
• Suitable for high-drain devices
