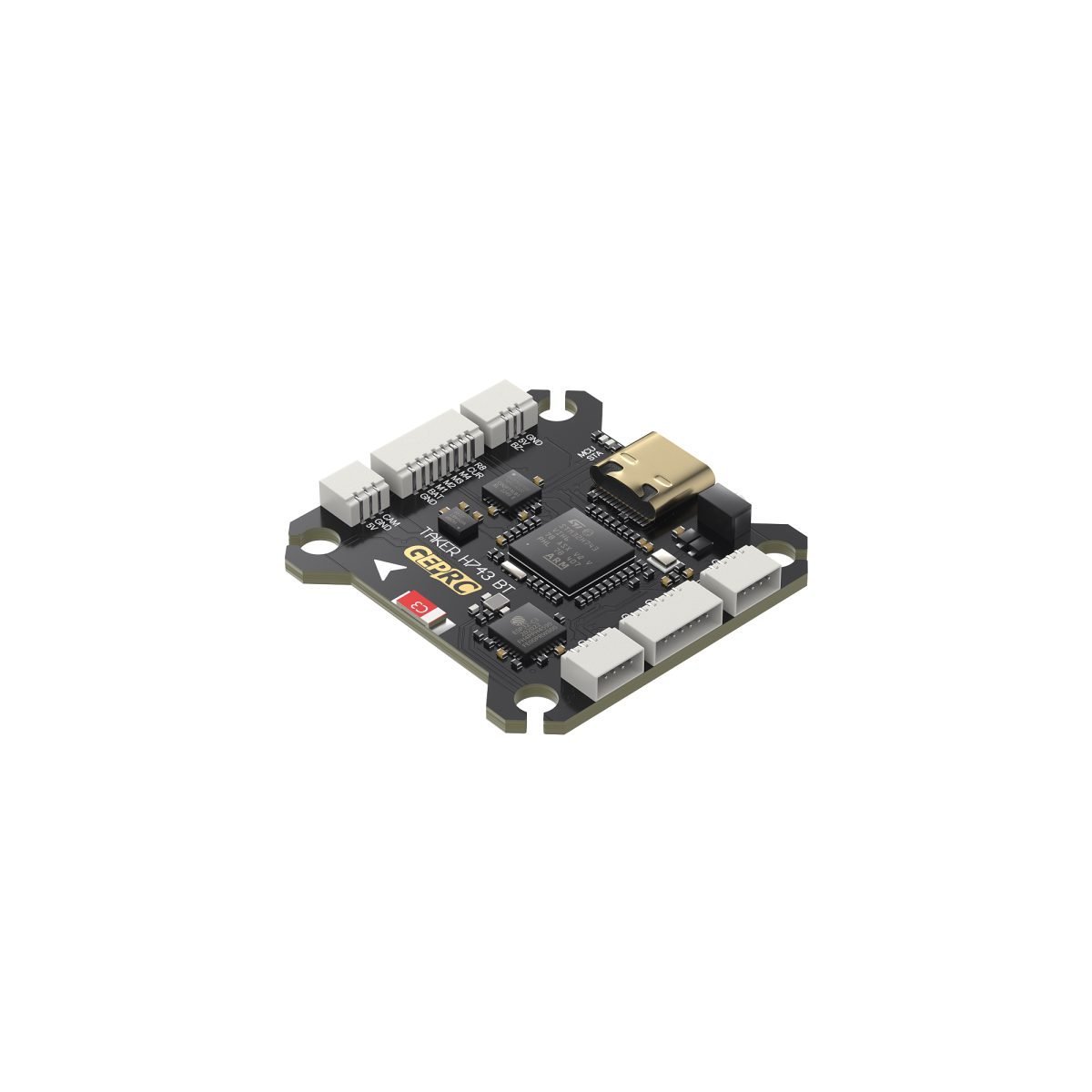

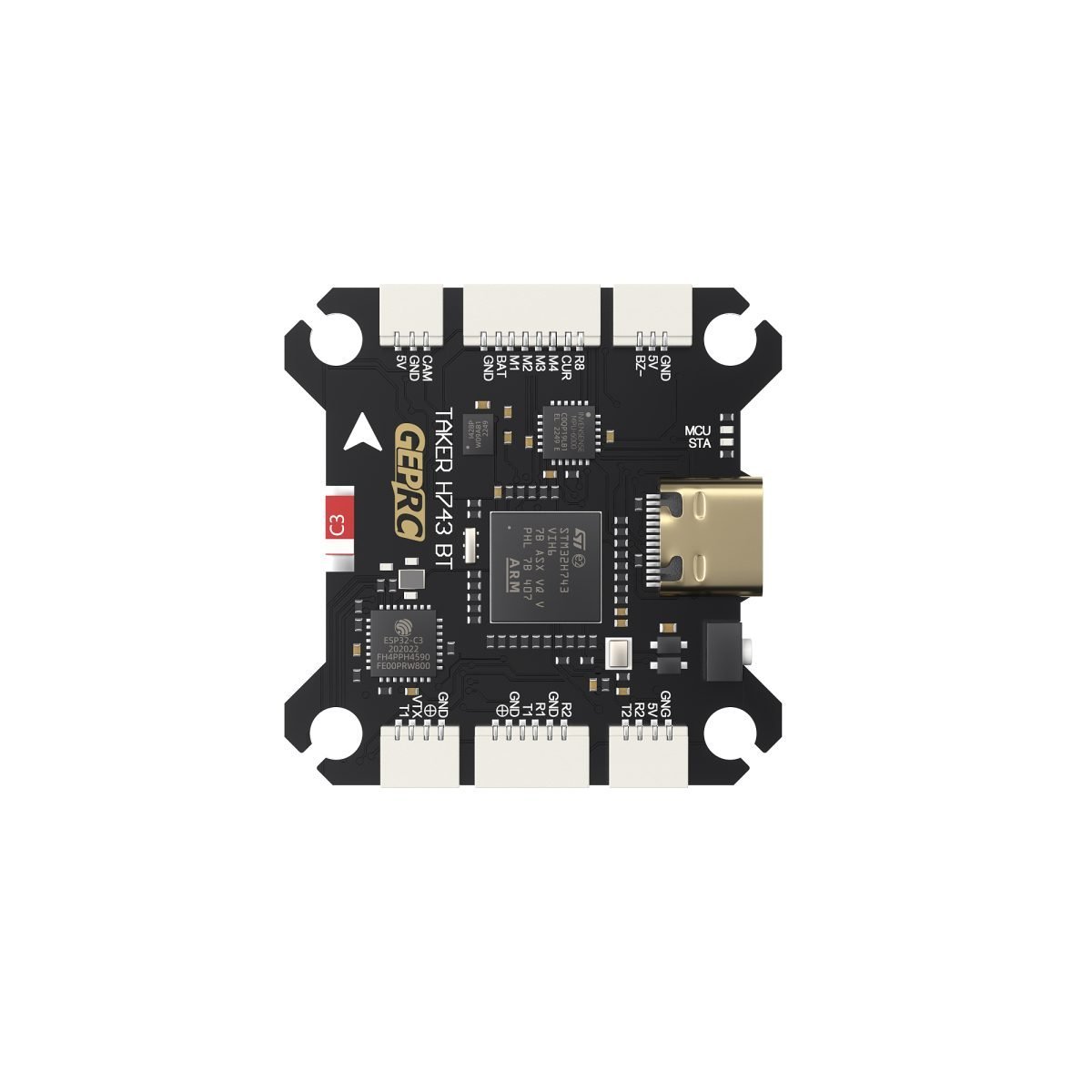

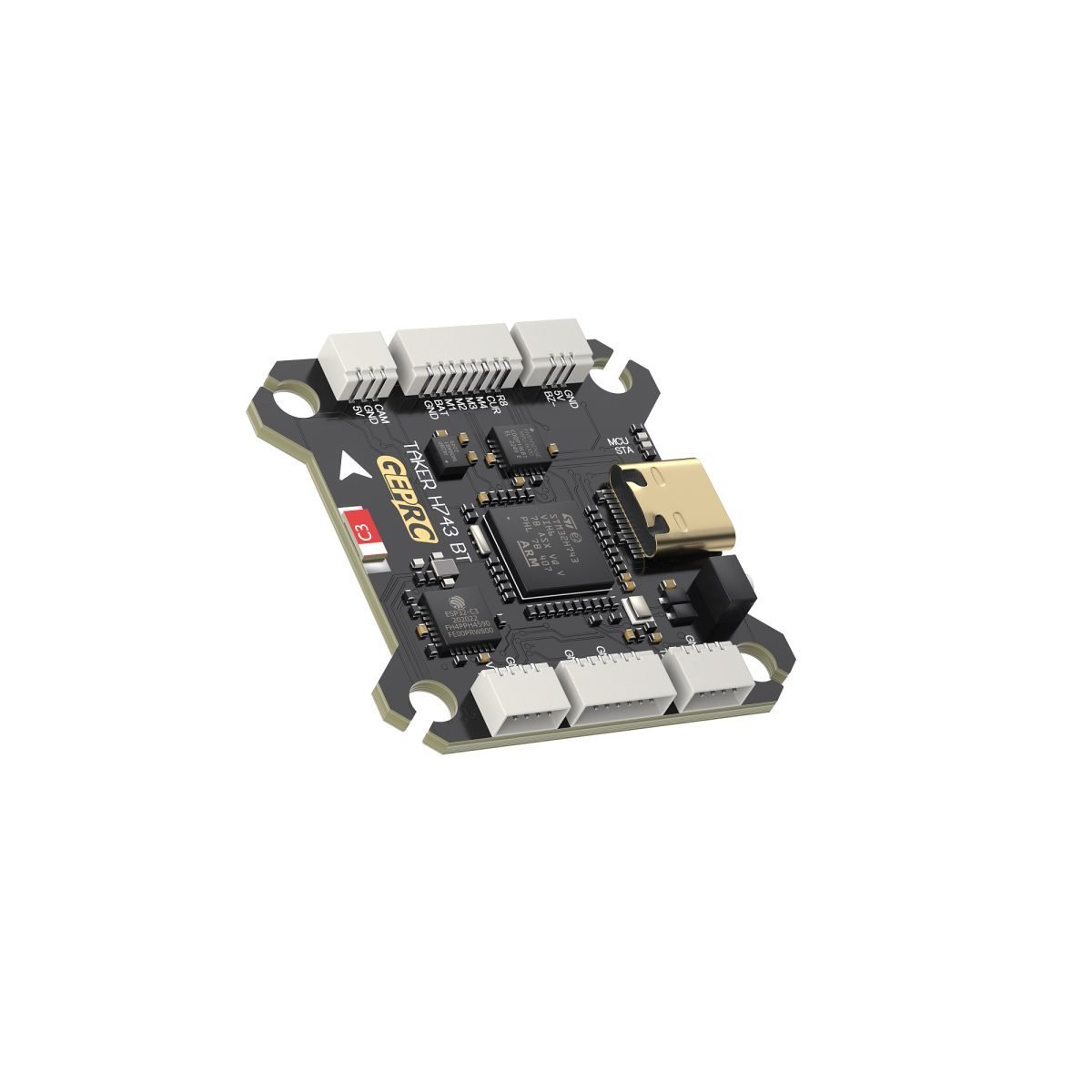

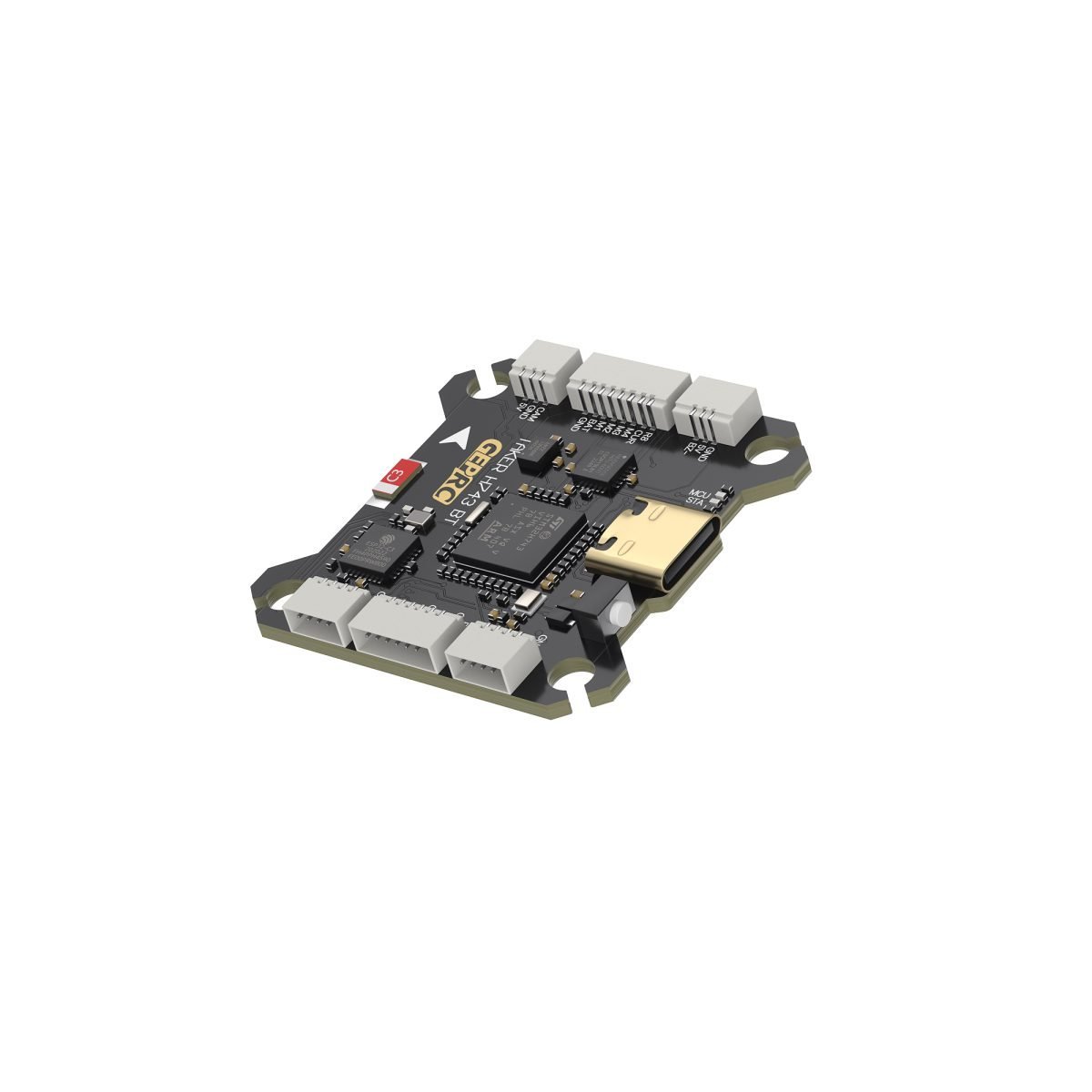

GEPRC TAKER H743 Flight Controller Dual Gyro – Advanced FPV Flight Controller

The GEPRC TAKER H743 Flight Controller Dual Gyro is a powerful and feature-rich flight controller designed for advanced FPV drones and professional UAV builds. The GEPRC TAKER H743 Flight Controller Dual Gyro uses a high-performance STM32H743 processor, ensuring ultra-fast processing, improved response time, and stable flight performance.

The GEPRC TAKER H743 Flight Controller Dual Gyro comes equipped with dual IMU sensors (MPU6000 and ICM42688-P), providing enhanced accuracy and reduced vibration interference. This makes it ideal for high-speed freestyle flying and precision drone applications.

Features

1.  Adopts the high-performance STM32H743 as the main controller
2. Equipped with MPU6000 and 42688-P dual gyroscopes
3. 512 MB of black box storage
4. Bluetooth parameter tuning
5. Integrated LC filter
6. Upgraded type-C USB interface
7. Direct plug-in compatibility with DJI Air Unit
8. Integrated Barometer
9. Features 7 groups of UART
10. 12V@2.5A + 5V@3A dual independent BEC
11. Offers multiple firmware options

Specifications

• MCU: STM32H743
• IMU: MPU6000 + ICM42688-P(dual gyro)
• Air Unit Connection: Directly plugs into DJI Air Unit
• Black Box：512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC Output: 5V@3A,12V@2.5A dual BEC
• Firmware Target: GEPRC_TAKER_H743
• Size: 38.5×38.5mm, mounting hole size 30.5×30.5mm
• Input Voltage: 3-6S LiPo
• UART Ports: 7 groups (UART3 fixed for Bluetooth)
• Power Filtering: Integrated LC filter
• Weight：8.4g

 Includes

1 x FC board

1 x O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x Buzzer connection cable

4 x Silicone grommets
