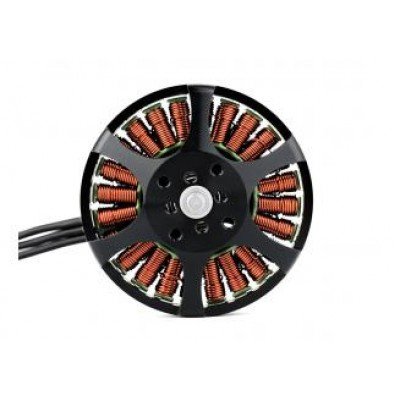

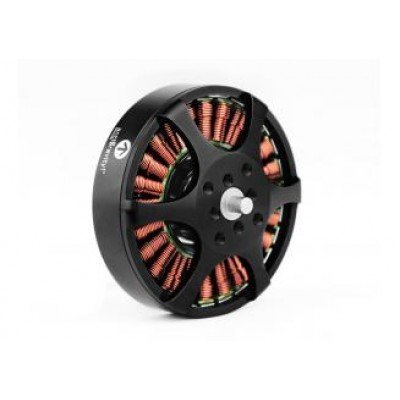

T-MOTOR MN5008 UAV Motor (KV400)

The T-MOTOR MN5008 KV400 is a high-performance brushless motor designed for professional UAV and VTOL applications. It delivers strong power, high efficiency, and stable flight performance. Therefore, it is ideal for aerial photography, surveying, mapping, and rescue operations.

In addition, the motor features an ultra-lightweight design. As a result, it helps increase flight time while maintaining smooth and reliable control.

Key Highlights

• Ultra-lightweight and high-efficiency design
• Supports long flight durations
• Up to 60 minutes flight time (with optimized setup)
• Smooth operation with low cogging torque

Key Features

The MN5008 uses high-quality imported materials and advanced engineering. Therefore, it ensures consistent and long-lasting performance.

• High slot space winding for better efficiency
• N52 high-temperature magnets for stable output
• Imported 696ZZ bearings for smooth rotation
• Anti-rust stator with high-temperature coating
• High-temperature copper wire (180°C rated)
• Centrifugal cooling design for heat control

Technical Specifications

General Specifications

• Motor Size: Φ55.6 × 32 mm
• Configuration: 24N28P
• Shaft Diameter: 6 mm
• Lead Cable: 80 mm
• Cooling System: Centrifugal cooling

KV400 Variant

This version is optimized for 6S setups. Therefore, it provides a balance of power and efficiency for medium to heavy UAVs.

• Rated Voltage: 6S LiPo
• Internal Resistance: 50 mΩ
• Idle Current (22V): 1.1 A
• Peak Current (180s): 35 A
• Max Power (180s): 800 W
• Motor Weight: 132 g
