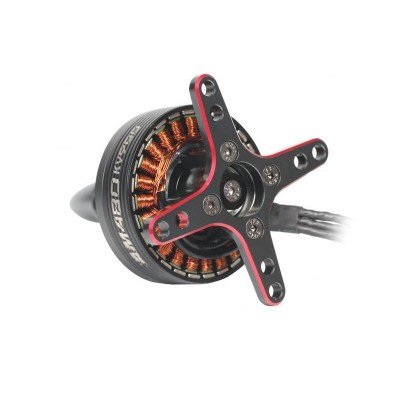

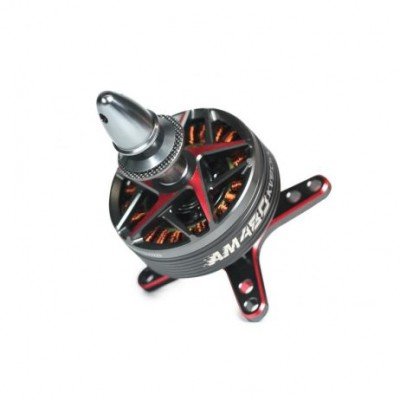

T-Motor AM480 3D 650KV Brushless Motor – Overview

The T-Motor AM480 3D 650KV is a high-performance brushless motor designed for freestyle and 3D flight planes. It delivers strong power, smooth control, and reliable performance. Therefore, it is ideal for pilots who perform aerobatics such as flips, rolls, and precision maneuvers.

In addition, the motor is optimized for 5–6S LiPo batteries. As a result, it provides efficient power delivery, better throttle response, and longer flight time.

Key Features

• 650KV rating for efficient and controlled power output
• Designed for 5–6S LiPo setups
• High torque design for strong thrust and stability
• Curved magnet structure for smooth operation
• Lightweight yet durable construction
• Improved cooling with optimized motor design
• Enhanced resistance for extreme maneuvers

Performance Overview

The AM480 motor is built for 3D and freestyle flying. Therefore, it provides strong thrust and precise control during aggressive movements.

Moreover, the optimized diameter-to-height ratio (3:1) improves torque and cooling. As a result, the motor maintains stable performance even under high load.

In addition, the curved magnets improve efficiency. Therefore, the motor runs smoother and responds better to throttle input.

Technical Specifications

• Model: AM480 3D
• KV Rating: 650KV
• Voltage: 5–6S LiPo
• Configuration: 24N28P
• Peak Current: 55A
• Max Power: 1150W
• Idle Current: 1.55A
• Shaft Diameter: 6 mm (in/out)
• Lead Wire: 90 mm enameled wire
• Weight: 145 g

Applications

• • 3D aerobatic planes
  • Freestyle RC aircraft
  • Precision flight setups
  • High-performance fixed-wing builds
