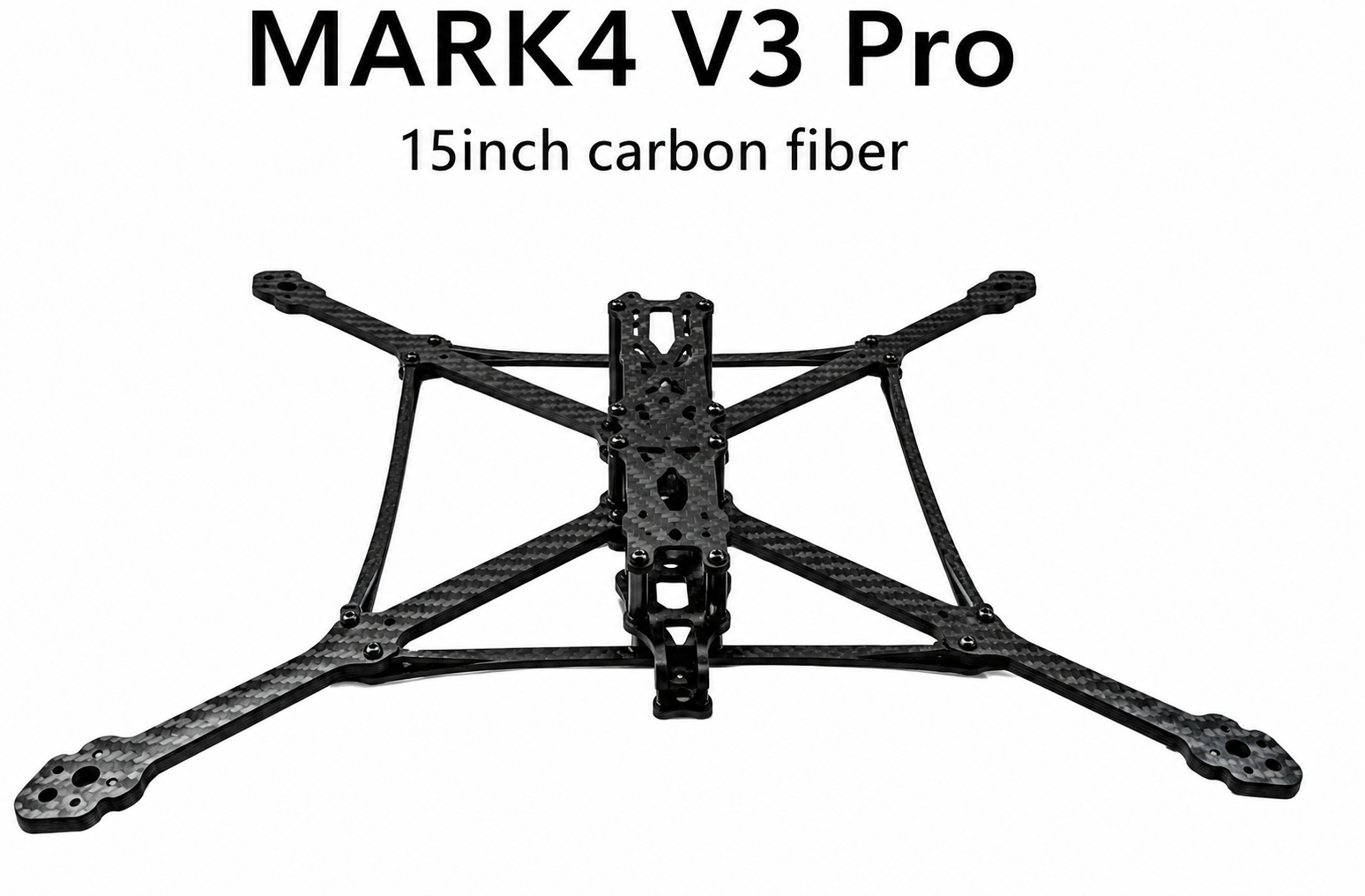

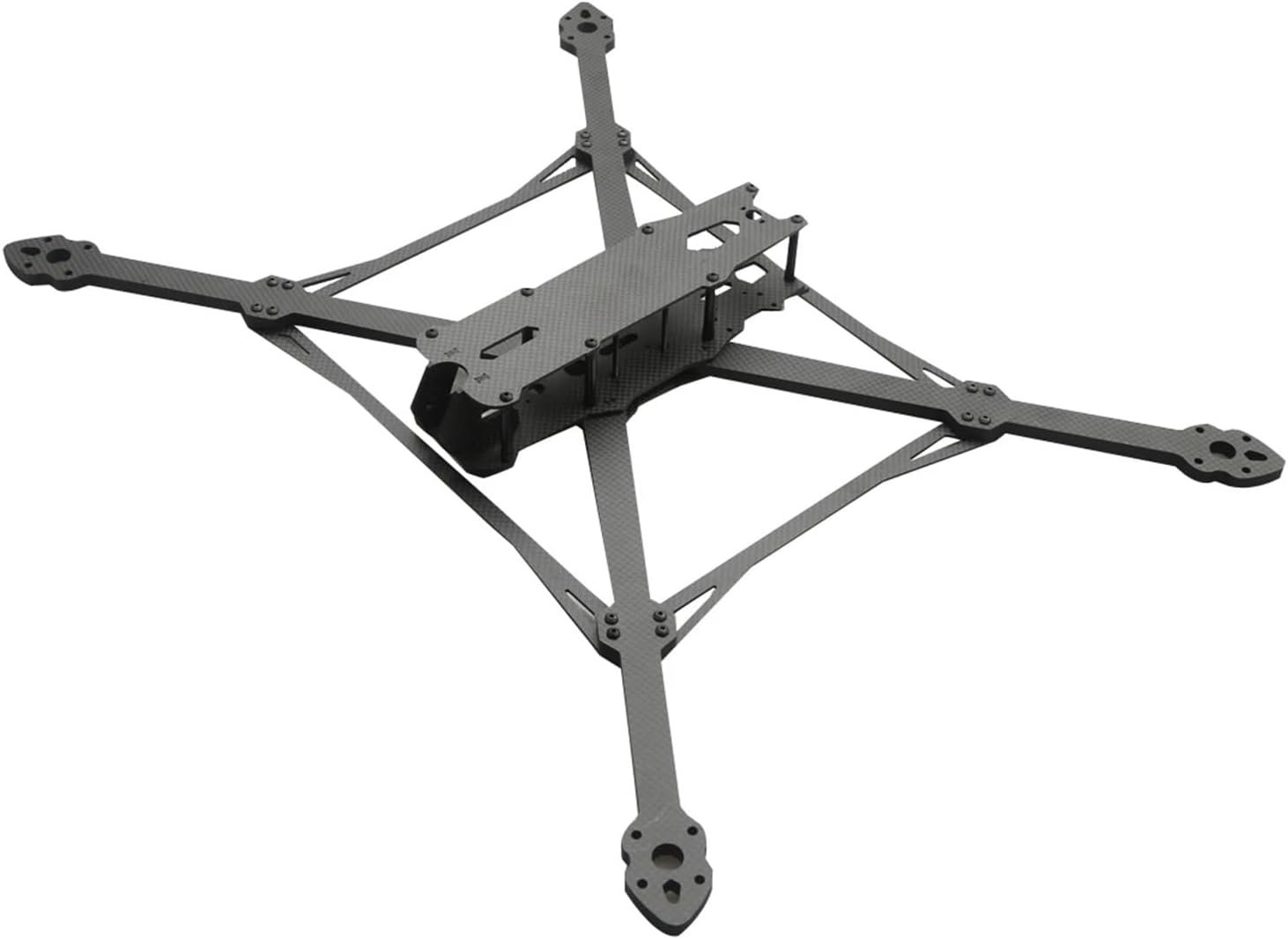

MARK4 V3 Pro 13/15 Inch Carbon Fiber Frame is engineered for professional drone builders and FPV enthusiasts seeking a lightweight, robust, and highly customizable platform. Constructed using premium multi-layer carbon fiber sheets, this frame combines strength, durability, and precision, ensuring superior performance even in extreme flight conditions. Available in 13-inch (570mm wheelbase) and 15-inch (680mm wheelbase) versions, the MARK4 V3 Pro accommodates a wide range of motors, propellers, and FPV setups, making it the perfect choice for long-range, freestyle, and cinematic drone applications.

Features

• Premium Carbon Fiber Construction: Made from high-quality multi-layer carbon fiber, offering high rigidity and excellent vibration resistance.
• Lightweight Design: Weighs only 560g (13-inch) and 590g (15-inch) while maintaining structural integrity.
• Versatile Motor Compatibility: Supports 4215, 4218, 4312, and A4320 motors.
• Flexible Propeller Adaptation: Can be fitted with 13-inch or 15-inch paddles depending on frame size.
• Precision Mounting: Flight control and VTX mounting holes support 20x20mm and 30.5×30.5mm standards.
• Durable Arm & Plate Thickness: 8mm thick arms with reinforced plates for maximum crash resistance.
• Camera Optimized: Camera mounting spacing at 19mm, ensuring stable FPV or cinematic shots.

Specifications

MARK4 V3 Pro 13 Inch (570mm)

• Upper Plate Thickness: 2.0mm
• Bottom Plate Thickness: 3.0mm
• Lower Fixed Plate Thickness: 3.0mm
• Camera Side Plate Thickness: 2.5mm
• Front & Rear Lip Plate Thickness: 2.5mm
• Surrounding Reinforcement: 3.0mm
• Arm Thickness: 8.0mm
• Weight: 560g
• Camera Mounting: 19mm
• Flight Control Mounting: 20x20mm / 30.5×30.5mm
• VTX Mounting: 20x20mm / 30.5×30.5mm
• Motor Mounting Hole: 21x21mm (Screw diameter: 4mm)

MARK4 V3 Pro 15 Inch (680mm)

• Upper Plate Thickness: 2.0mm
• Bottom Plate Thickness: 3.0mm
• Lower Fixed Plate Thickness: 3.0mm
• Camera Side Plate Thickness: 2.5mm
• Front & Rear Lip Plate Thickness: 2.5mm
• Surrounding Reinforcement: 3.0mm
• Arm Thickness: 8.0mm
• Weight: 590g
• Camera Mounting: 19mm
• Flight Control Mounting: 20x20mm / 30.5×30.5mm
• VTX Mounting: 20x20mm / 30.5×30.5mm
• Motor Mounting Hole: 21x21mm (Screw diameter: 4mm)

Applications

• Long-range FPV drones
• Freestyle and racing drones
• Aerial cinematography and photography
• Professional drone development and prototyping
