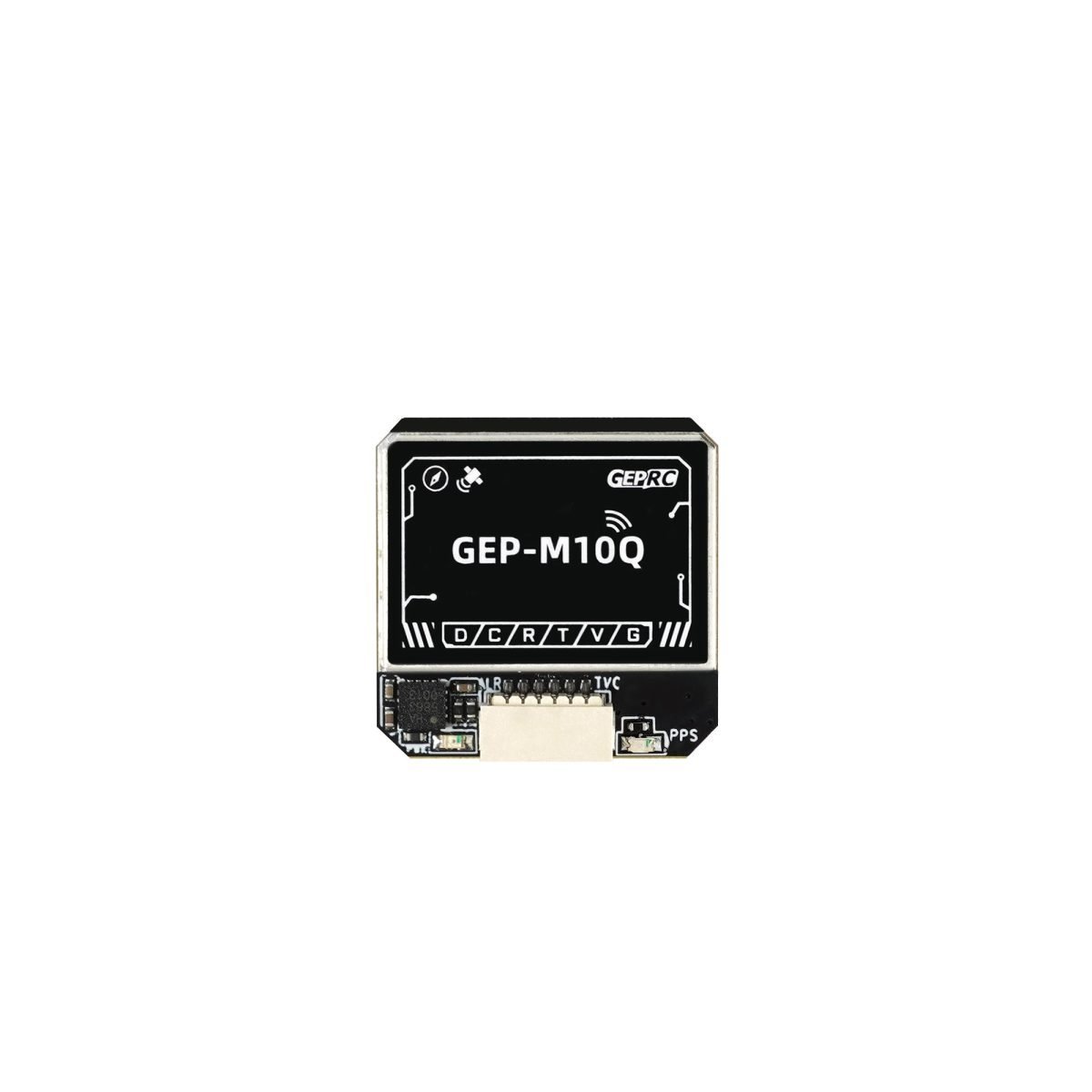

The GEPRC M10Q GPS Module is a high-performance navigation unit designed for precision and reliability in FPV drones. Powered by the advanced u-blox M10050 chip, this module supports multiple satellite systems, including GPS, GLONASS, BDS, GALILEO, SBAS, and QZSS, enabling joint positioning with up to 32 satellites. It features a 72-channel receiver with outstanding sensitivity, ensuring fast and accurate positioning even in challenging conditions.

With a maximum height capability of 50,000 meters, a speed limit of 500 meters per second, and a 4G acceleration tolerance, this module is built for extreme conditions. The integrated QMC5883L magnetometer provide precise directional data, while the compact design with a small 18x18mm antenna ensures minimal impact on your drone’s aerodynamics. Whether you’re racing, filming, or exploring, the GEPRC M10Q GPS Module delivers the accuracy and performance you need.

FEATURES:

1. u-blox M10050 chip
2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
3. Fast positioning speed,Up to 32 satellites
4. Stable connection quality

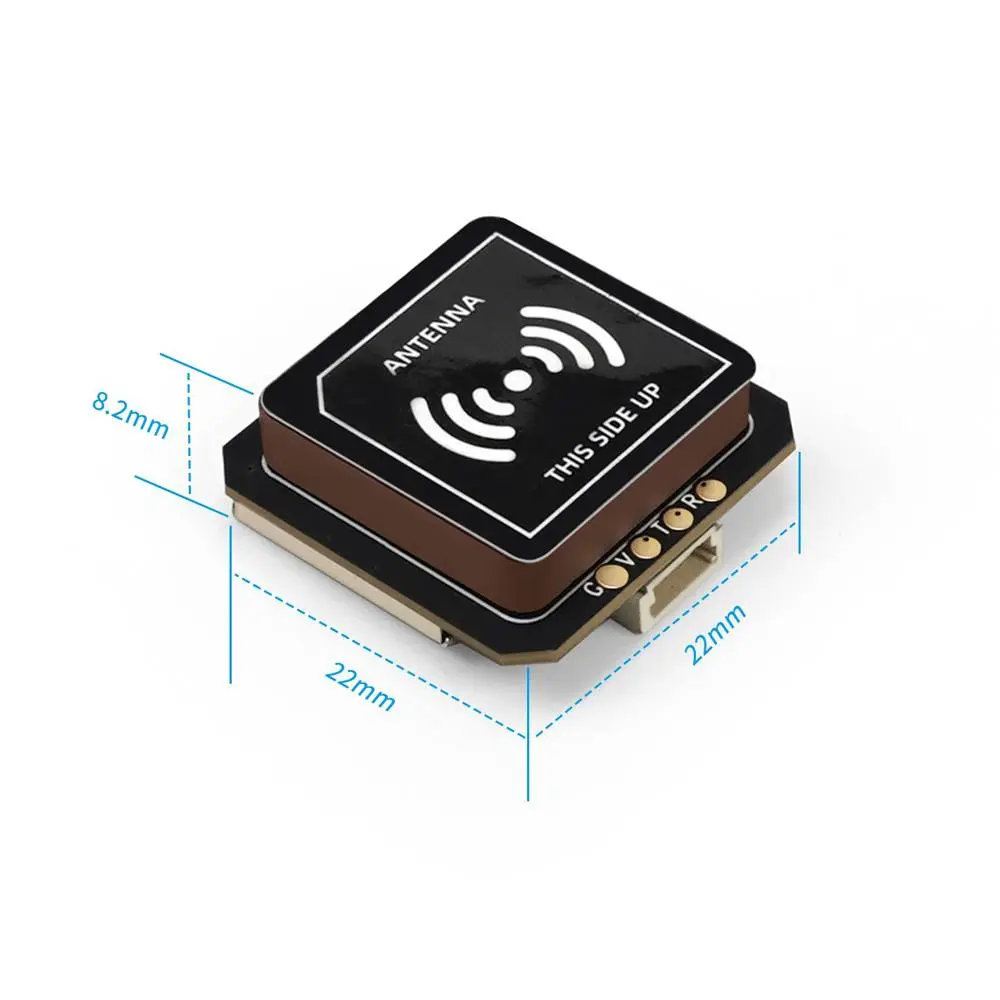

5. 18x18mm antenna size, better signal receiving performance
6. Built-in Flash chip and Farad capacitor
7. Onboard indicator light, easy to use
8. Integrated magnetometer

WIRING DIAGRAM:

PACKAGE INCLUDES:

• 1 x GPS module
• 1 x terminal wire
• 1 x GPS module instruction manual
• 1 x GEPRC sticker
• 1 x heat shrink tubing
