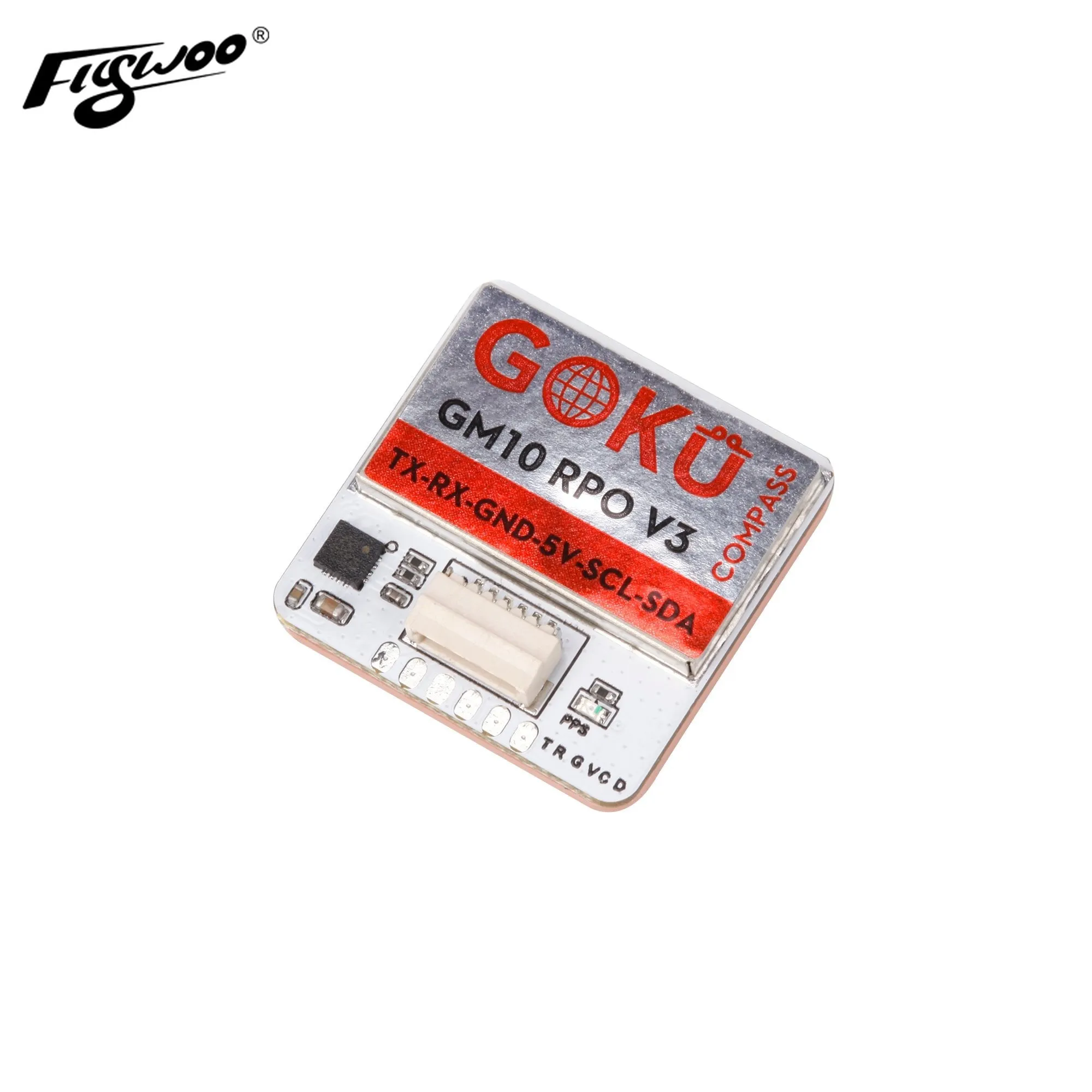

FLYWOO GOKU GM10 PRO V3 GPS with Compass – Overview

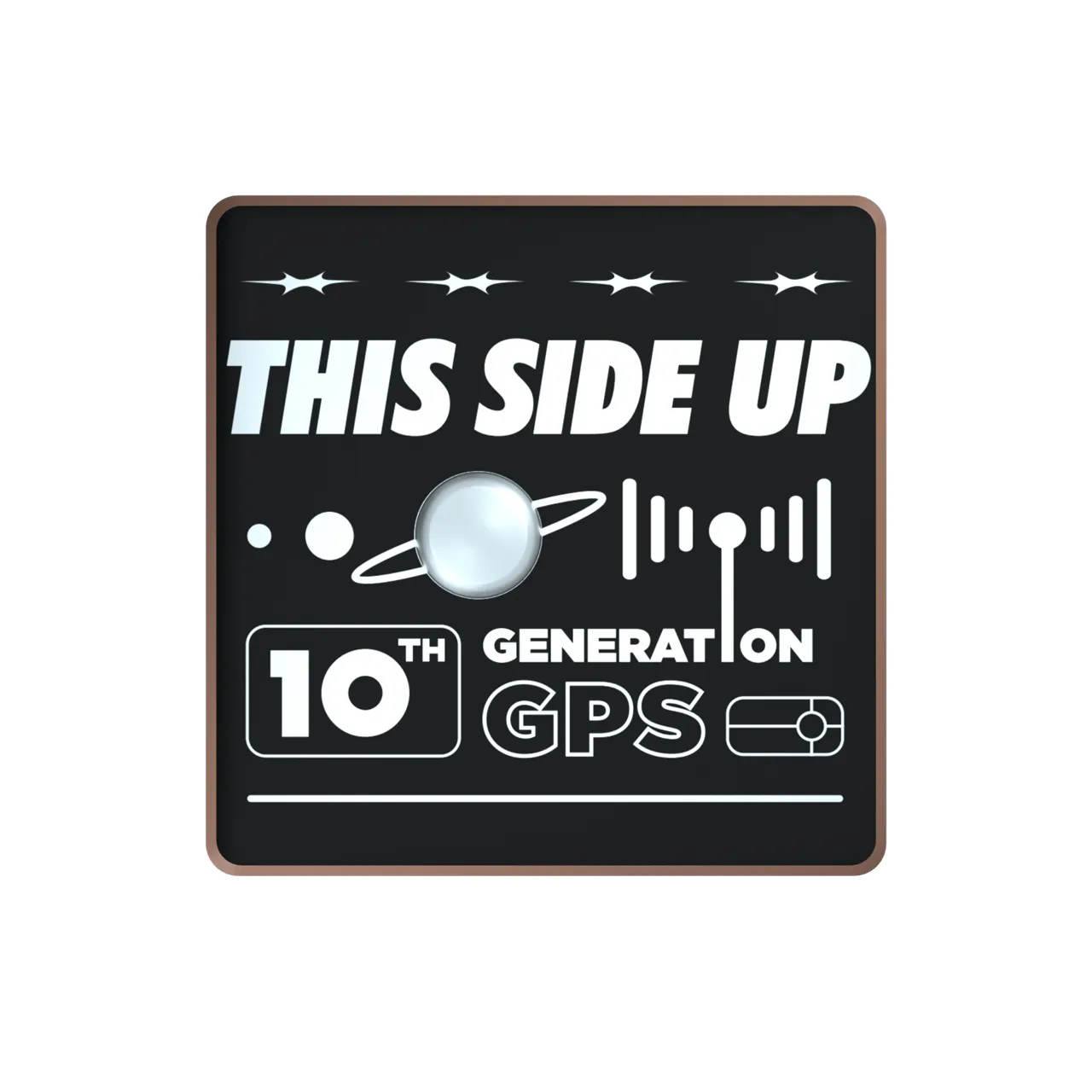

The FLYWOO GOKU GM10 PRO V3 GPS is a high-precision GNSS module designed for FPV drones and UAV systems. It uses the latest M10050 (10th generation) chip, which provides faster satellite lock and improved positioning accuracy. Therefore, it is ideal for long-range flying, return-to-home (RTH), and autonomous navigation.

In addition, this module includes a QMC5883L electronic compass. As a result, it delivers accurate heading data and improves flight stability.

Key Features

• Latest M10050 GNSS chip for fast and accurate positioning
• Built-in QMC5883L compass for direction sensing
• Supports multiple satellite systems for better coverage
• Faster satellite acquisition compared to previous GM8 V2
• Compact and lightweight design (7.3 g)
• Plug-and-play with 6-pin connector

Multi-GNSS Support

The module supports multiple global navigation systems. Therefore, it improves accuracy and signal reliability:

• GPS (L1)
• GLONASS (L1)
• Galileo (E1)
• BeiDou (B1)
• QZSS
• SBAS

As a result, it provides stable positioning even in challenging environments.

Technical Specifications

General

• Brand: Flywoo
• Model: GM10 PRO V3 GPS
• Dimensions: 25 × 25 × 6 mm

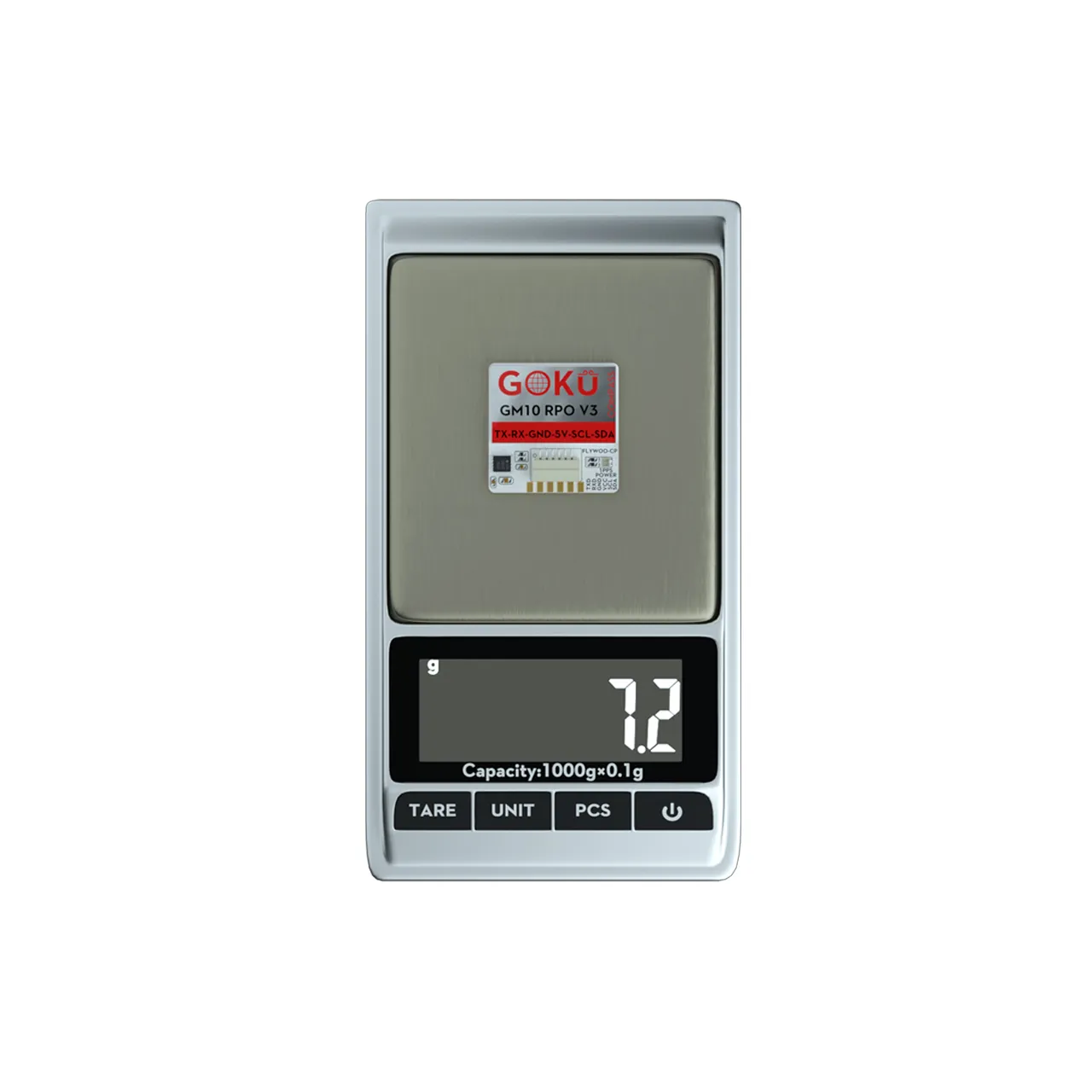

• Weight: 7.3 g
• Connector: 1.0 mm 6-pin

Electrical

• Chipset: M10050 (10th Gen)
• Channels: 72
• Input Voltage: 5V
• Baud Rate: 4800 – 921600 bps (default 115200)
• Output Frequency: 1–10 Hz (default 10 Hz)

Performance

• Tracking Sensitivity: -162 dBm
• Reacquisition: -160 dBm
• Max Altitude: 50,000 m
• Max Speed: 500 m/s
• Max Acceleration: < 4G

Operating Conditions

• Operating Temp: -40°C to +85°C
• Storage Temp: -40°C to +105°C

Indicator & Pinout

• PPS LED:
  • Off → No GPS lock
  • Blinking → GPS locked

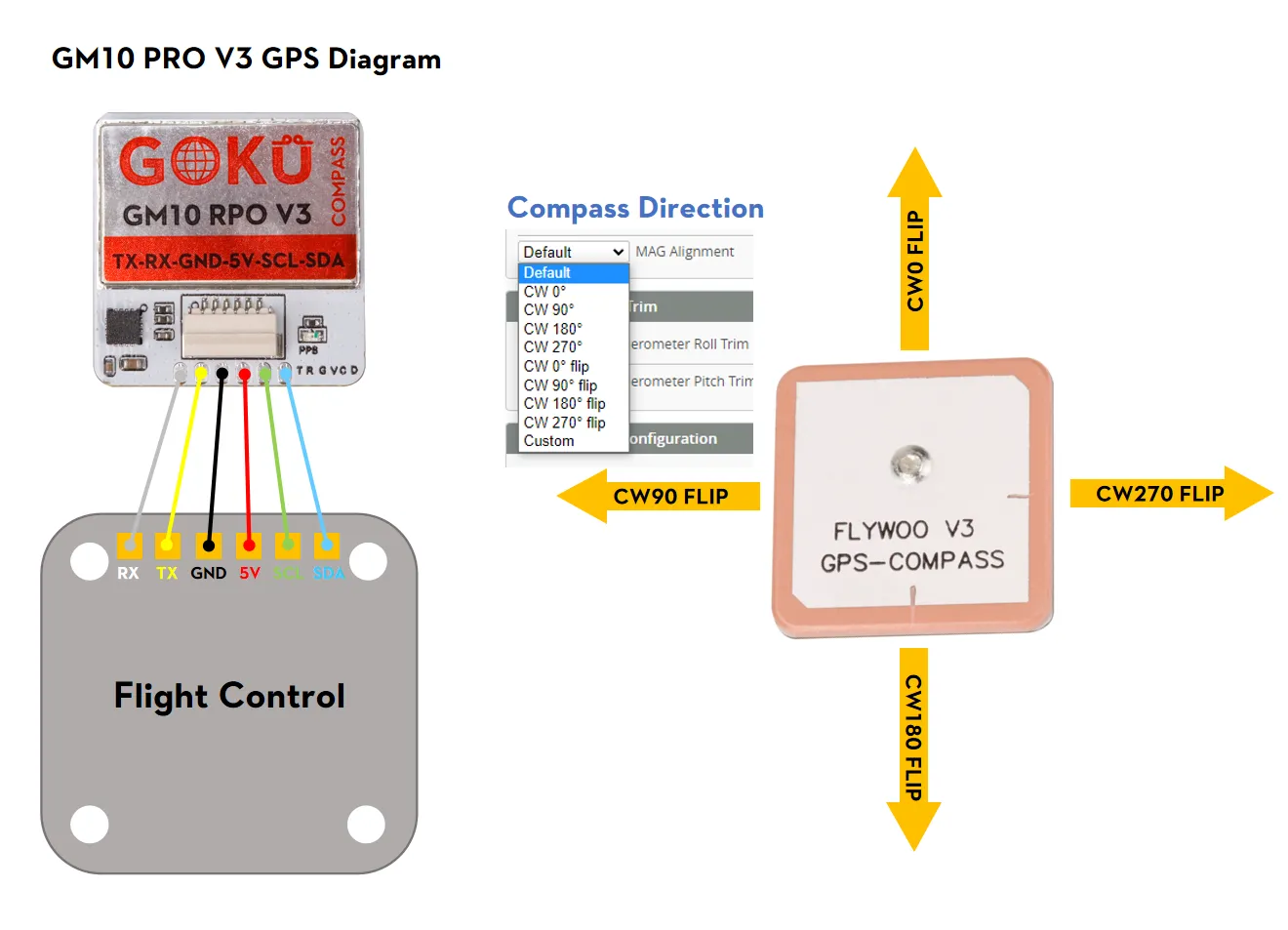

• Pins: TX, RX, GND, 5V, SCL, SDA

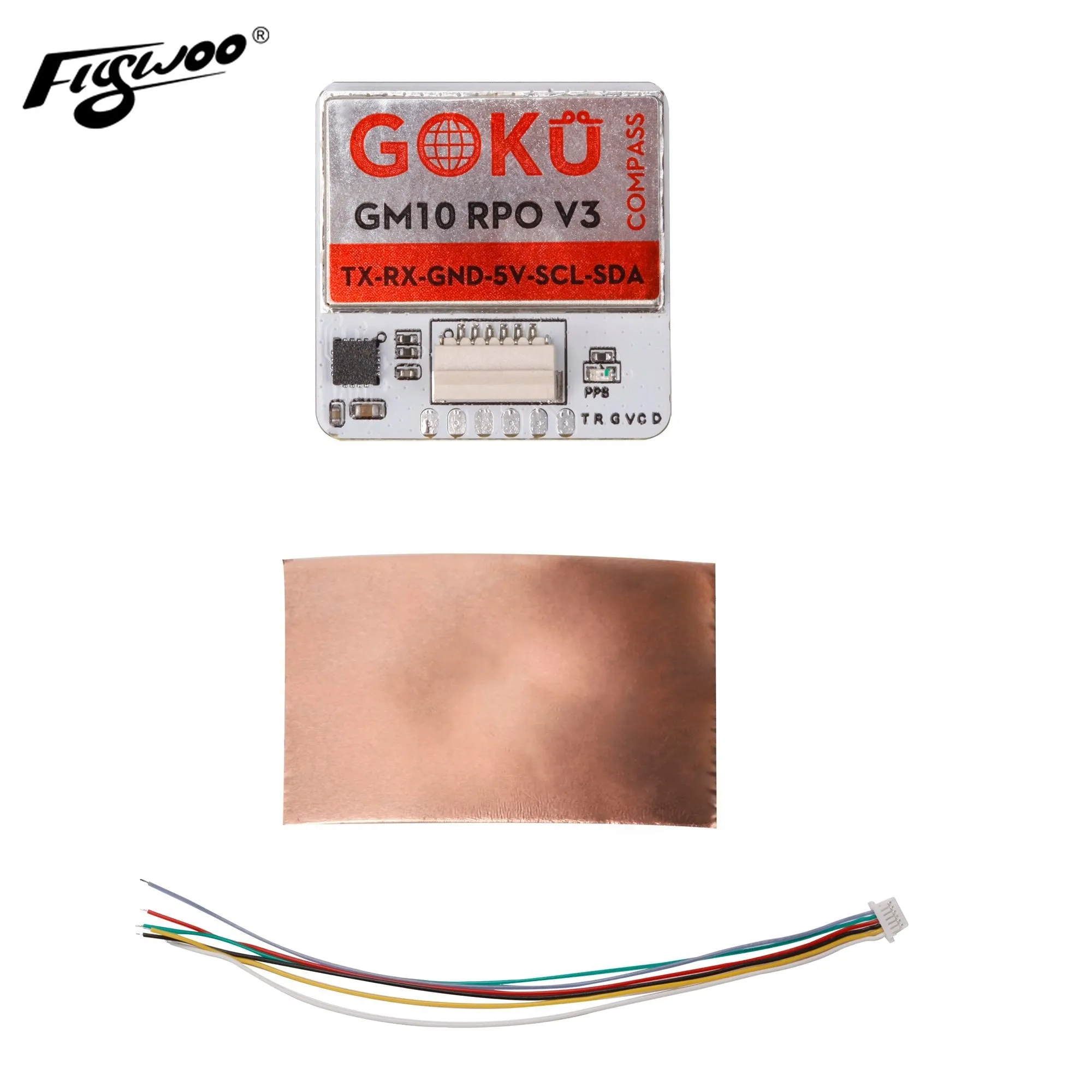

Package Includes

• 1 × GM10 PRO V3 GPS Module
• 1 × 150 mm Cable
• 1 × Copper Foil
